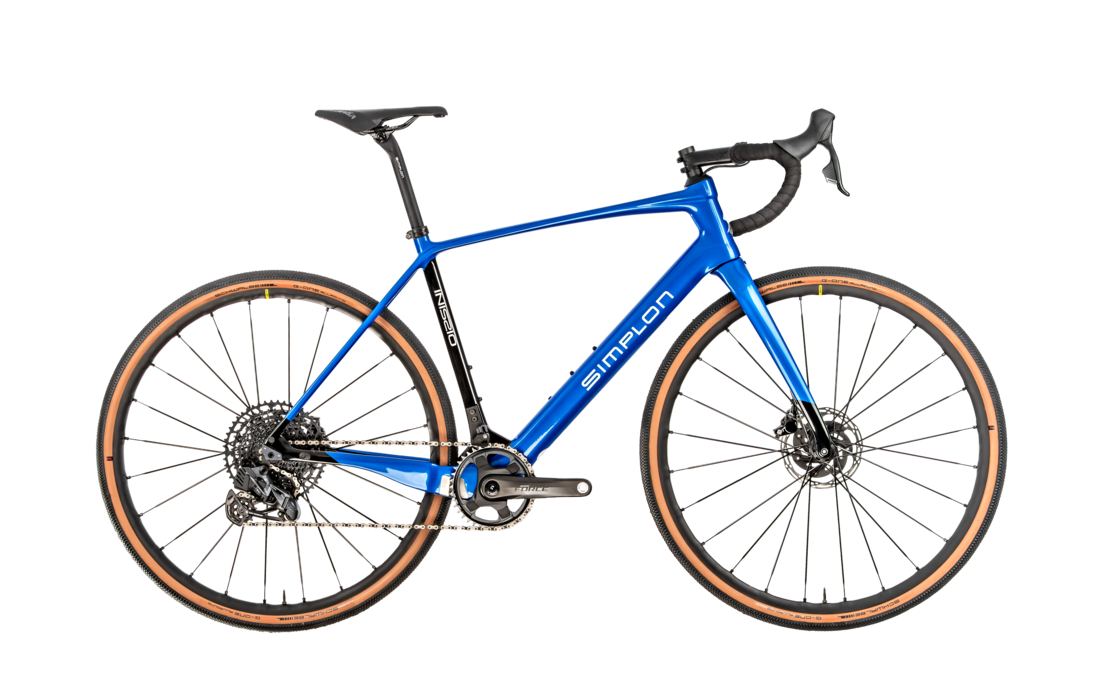

Inissio Gravel
No track too far, no road too rough – the INISSIO GRAVEL guarantees unlimited riding thanks to its wide, grippy tyres and a high-quality carbon frame. Its optimally arranged carbon fibres minimise weight, maximise stiffness and ensure a high level of comfort. With many add-on parts available, the INISSIO GRAVEL can be configured fully equipped.
maximum riding pleasure on any terrain
Sturdy, fast, all-terrain: As a crossover between cross and endurance bike, the INISSIO GRAVEL road bike is incredibly versatile and a perfect companion for cross-country tours. Whether it’s on the road, on grass or on gravel: With this allrounder, you’re safe on all kinds of terrain – thanks to tyres that are up to 40 mm in width. Additionally, the gravel road bike offers you the possibility to mount mudguards, which turns it into an appealing option for commuters. A built-in rear rack makes the Inissio Gravel a great bike for travel as well.
GeometrY
The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.
| Inissio Gravel | 45/XS | 49/S | 53/M | 57/L | 62/XL | |
|---|---|---|---|---|---|---|
| A | Seat tube length | 430 | 470 | 510 | 550 | 600 |
| B | Top tube length | 523 | 535 | 565 | 585 | 605 |
| C | Head tube angle | 69° | 70° | 70° | 71° | 72° |
| D | Seat tube angle | 74,5° | 74,5° | 73,5° | 73,5° | 73,5° |
| E | Head tube length | 120 | 135 | 160 | 185 | 210 |
| F | Chainstay length | 425 | 425 | 425 | 425 | 425 |
| G | Wheelbase | 1025 | 1029 | 1050 | 1061 | 1072 |
| H | Bottom bracket drop | 67 | 67 | 67 | 67 | 67 |
| I | Fork length | 400 | 400 | 400 | 400 | 400 |
| K | Fork offset (rake) | 48 | 48 | 48 | 48 | 48 |
| M | Stand over height | 715 | 748 | 781 | 812 | 843 |
| S | Stack | 535 | 553 | 577 | 604 | 632 |
| R | Reach | 375 | 382 | 394 | 406 | 418 |
| STR* | Stack to Reach | 1,43 | 1,45 | 1,46 | 1,49 | 1,51 |
All lengths in mm
*STR: The higher the number, the more upright is the seating postion.
Facts & Figures
| bike weight | from 8,22 kg |
|---|---|
| MAX. weight (bike + rider + GEar) | 125 kg |
| FORK TRAVEL / LENGTH / OFFSET | 0 / 400 / 48 mm |
| REAR AXLE / THRU-AXLE LENGTH / THREAD PITCH | 142 x 12 mm |
| front axle | 100 x 12 mm |
| MAX. tire dimension | ETRTO: 40-622 /Â 28 x 1.50 Inches |
| MAX. brake rotor size | 180 mm |
| brake mount | FM160 |
| seat tube diameter | 27,2 mm |
| headset standard | IS44 |
| BOTTOM BRACKET STANDARD | PF BB86 |
| MAX. chainring size | 2x: 48 / 31TÂ 1x: 40T |
| UDH DERAILLEUR HANGER | No |
| water bottle mounts | 2 |
| MAX. water bottle size | 500-750ml Configuration Dependent |
| BIKE TRAINER READINESS | Yes |
| CHILD TRAILER READINESS | No |
High-end at its best! If you appreciate a neat and clean look, you’ll love the Smart Headset: All cables run from the steerer directly through the headset down into the frame. At the same time, the Smart Headset also serves as protection for the cables.
The INISSIO GRAVEL is uncompromisingly comfortable on longer journeys too: Our popular Comfort Concept allows for a relaxed sitting position. That’s facilitated by special flattened tube cross-sections on the seat stays and chainstays, seat post, top tube as well as the seat tube.
Higher vertical flex as well as comfort at the fork are possible thanks to the Raptor Dropout technology – rear-facing dropouts. A huge benefit for all those who love to head out into rough terrain!
Bike classification: ASTM category 2
Learn more (PDF)
 |
|
