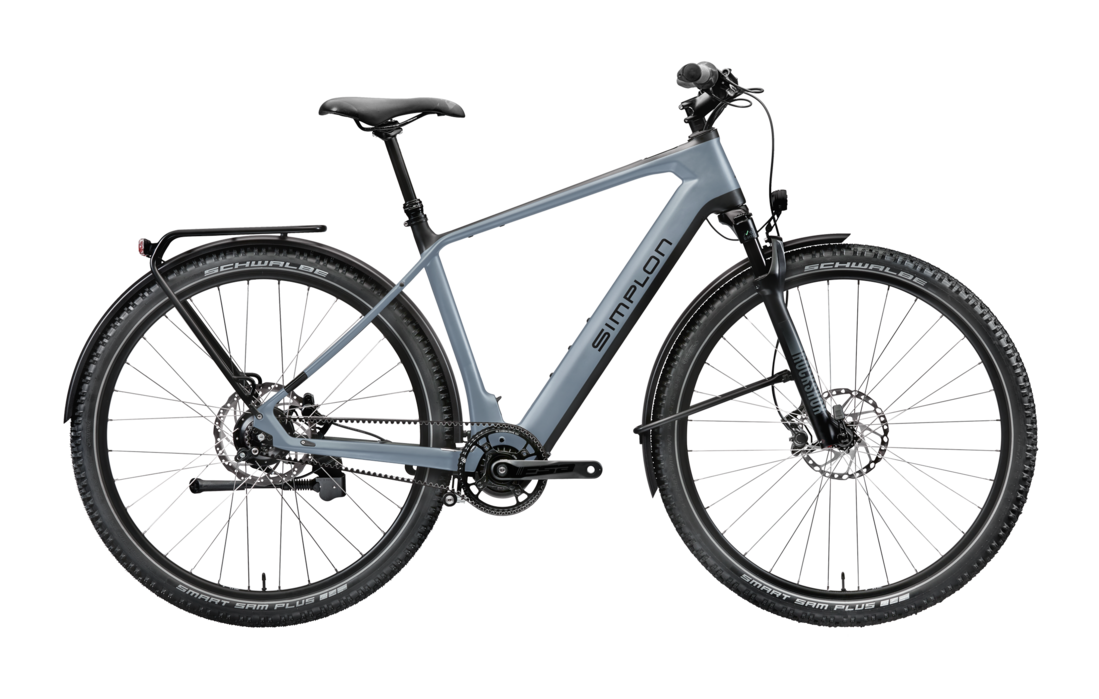

Silk 365 :eLight
Stylish, lightweight, and comfortable. The SILK :eLIGHT polishes the dusty image of clunky e-bikes and redefines urban lifestyle. The TQ motor and battery nestle almost invisibly in the elegant design and, together with the high-quality carbon frame, reduce the overall weight to a minimum. A natural feel and excellent handling guarantee pure riding pleasure - an e-bike for people with high demands on aesthetics and riding performance.
FOR ALL THOSE WHO VALUE A NATURAL DRIVING EXPERIENCE
The SILK 365 :eLIGHT has been designed to save a lot of weight. The carbon frame ensures efficient power transfer and also high sitting comfort. The fork is made of carbon as well and ensures low overall weight and optimum stiffness. The flyweight can be carried effortlessly over obstacles – which is particularly advantageous for stairs or pasture fences.
An insider tip in terms of comfort is the optional adjustable seat post. It allows riders to get on and off the bike easily, for instance, at traffic lights. And thanks to optional studded tyres, the trekking bike also cuts a fine figure in off-road terrain.
If you opt for a gear hub, we install a rust-free and maintenance-free carbon belt instead of a classic bicycle chain.
GeometrY
The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.
| 46/S | 51/M | 56/L | 61/XL | ||
|---|---|---|---|---|---|
| A | Seat tube length | 460 | 510 | 560 | 610 |
| B | Top tube horizontal | 580 | 600 | 620 | 640 |
| C | Head tube angle | 69,5° | 70° | 70,5° | 71° |
| D | Seat tube angle | 73° | 72,5° | 72,5° | 72,5° |
| E | Head tube length | 130 | 150 | 170 | 190 |
| F | Chainstay length | 465 | 465 | 465 | 465 |
| G | Wheelbase | 1107 | 1117 | 1132 | 1147 |
| H | Bottom bracket drop | 72,5 | 72,5 | 72,5 | 72,5 |
| I | Fork length | 460 | 460 | 460 | 460 |
| K | Fork offset | 51 | 51 | 51 | 51 |
| M | Standover | 733 | 781 | 829 | 877 |
| S | Stack | 610 | 631 | 652 | 673 |
| R | Reach | 394 | 401 | 414 | 428 |
| STR* | Stack to Reach | 1,55 | 1,57 | 1,57 | 1,57 |
All lengths in mm
* STR: Higher number indicates more upright sitting posture.
Trailer which are mounted on the rear wheel are allowed for this model.
| 41/XS | 46/S | 51/M | 56/L | ||
|---|---|---|---|---|---|
| A | Seat tube length | 410 | 460 | 510 | 560 |
| B | Top tube horizontal | 555 | 580 | 600 | 615 |
| C | Head tube angle | 69,0° | 69,5° | 70,5° | 70,5° |
| D | Seat tube angle | 74,0° | 73,0° | 72,5° | 72,5° |
| E | Head tube length | 110 | 130 | 150 | 170 |
| F | Chainstay length | 465 | 465 | 465 | 465 |
| G | Wheelbase | 1097 | 1107 | 1117 | 1127 |
| H | Bottom bracket drop | 72,5 | 72,5 | 72,5 | 72,5 |
| I | Fork length | 460 | 460 | 460 | 460 |
| K | Fork offset | 51 | 51 | 51 | 51 |
| M | Standover | 640 | 640 | 642 | 643 |
| S | Stack | 589 | 610 | 631 | 652 |
| R | Reach | 386 | 394 | 401 | 409 |
| STR* | Stack to Reach | 1,52 | 1,55 | 1,57 | 1,59 |
All lengths in mm
* STR: Higher number indicates more upright sitting posture
Trailer which are mounted on the rear wheel are allowed for this model.
| 41/S | 47/M | 54/L | ||
|---|---|---|---|---|
| A | Seat tube length | 410 | 470 | 540 |
| B | Top tube horizontal | 585 | 600 | 615 |
| C | Head tube angle | 69° | 69° | 69° |
| D | Seat tube angle | 73° | 73° | 73° |
| E | Head tube length | 150 | 165 | 180 |
| F | Chainstay length | 465 | 465 | 465 |
| G | Wheelbase | 1119 | 1135 | 1151 |
| H | Bottom bracket drop | 75 | 75 | 75 |
| I | Fork length | 460 | 460 | 460 |
| K | Fork offset | 51 | 51 | 51 |
| M | Stepthrough | 390 | 390 | 390 |
| S | Stack | 626 | 640 | 654 |
| R | Reach | 394 | 404 | 415 |
| STR* | Stack to Reach | 1,59 | 1,58 | 1,58 |
All lengths in mm
* STR: Higher number indicates more upright sitting posture
Trailer which are mounted on the rear wheel are allowed for this model.
TQ MOTORS: NATURAL RIDING FEEL THAT IS ALMOST INVISIBLE
Do you love the natural feel of a bike, but would like a little assistance when pedalling? Then the TQ motor is the right choice! You have to be as quiet as a mouse to hear the motort when cycling to work. The drive unit is barely visible, as all the components are beautifully integrated into the bike. The current battery status, riding mode and range are visible on the LED display integrated into the top tube. You will only feel the slight energy kick of the HPR50 "made in Germany" drive unit when riding.
You can find out more about the TQ motor and other e-bike motor systems we use in this magazine article.
Facts & Figures
| Max. Weight (Bike + Rider + Gear) | 140 kg / 120 kg (LOW) |
|---|---|
| Fork Travel | 0 / 460 / 51 mm |
| Rear Axle / Thru Axle Length / Thread Pitch | 142 x 12 mm/ 172 x M12 x 1.0 mm |
| Front Axle | 110 x 15 mm |
| Max. Tire Dimension | ETRTO: 54-622 / Inch: 29*2.10 |
| Max. Brake Rotor Size | 203 mm |
| Brake Mount | PM7 |
| Seat Post Diameter | 31,6 mm |
| Headset Standard | AZA-642 |
| Max. Chainring Size | 38 Teeth; Chainline 50 mm |
| UDH DERAILLEUR HANGER | No |
| Water Bottle Mounts | 1 |
| Max. Water Bottle Size | Depending on model and size |
| Motor | TQ-HPR50 |
| Max. Support Level | 200% |
| Max. Torque | 50 Nm |
| Max. Power | 300 Watt |
| Battery Capacity | 360 Wh |
| Range Extender | 160 Wh |
| Charge on Bike | Yes |
| Removable Battery | Only in service |
| Child Trailer Readiness | Yes |
| Kickstand Compatible | KSA 40 |
Those who want to go on long tours appreciate maximum riding comfort. This is ensured by our Comfort Concept, which is characterised by VIBREX® seat stays, among other things. Special carbon fibres and their layup ensure optimum damping and make the frame extremely comfortable.
The following overview guides you through the SIMPLON technologies which make our SILK 365 :eLIGHT such a special bike.
Bike classification: ASTM category 2
 |
|
