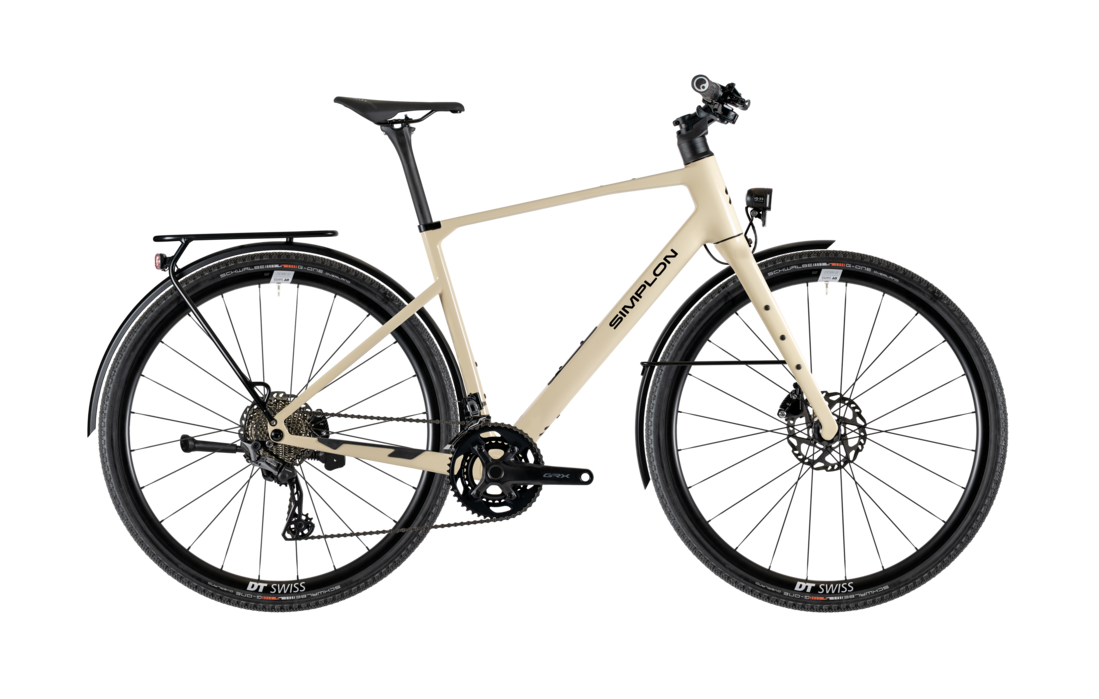

Grid 365

Fast, agile and comfortable - whether on asphalt, cobblestones or in the countryside. The GRID 365 combines style, efficiency and riding pleasure. With 40 mm tires, clever storage space, fully equipped spec and 14 mounting points, it is the ideal urban and commuter bike.

from

€ 3,499.00

from

CHF 3,499.00

City

Commuting

Trekking

All Terrain

Print

Prices in EUR

Prices in CHF

print technologies and options

print geometry table

Ask an expert

Find a Dealer

From city traffic to offroad fun.

Frame material

Carbon

System weight (bike + load)

130 kg

Fork travel

40 mm (optional)

Fully equipped

as standard

Child trailer

approved

Grid 365

Ask an expert

configure now

Find a Dealer

Fully equipped for every day.

Whether rain or sun, day or night – with the full spec as standard, including lights, mudguards and luggage rack (up to 15 kg), you are perfectly equipped for any eventuality.

Everything important always with you

Small items are perfectly stowed in the practical storage box in the down tube, always within reach.

More storage space, more options

Your bike bags will always find their place - thanks to the numerous attachment points on the frame and fork.

Your shift, your choice

Choose whether you ride with 1x simplicity or 2x versatility.

SIMPLON Comfort Concept

The specially designed fork for the GRID 365 and the 40 mm Overland tires provide comfort on every route - optionally with a 40 mm suspension fork.

Curious what the following configuration packages are all about?

Then take a look at our magazine article!

City, countryside, fields – the GRID 365 excels everywhere!

The GRID 365 combines comfort and versatility for everyday urban life and beyond. Clever attachment points and a practical storage box ensure that you always have everything you need to hand. With 40 mm wide tires, it glides smoothly over asphalt while offering sufficient grip for gravel paths.

Another plus is the dynamo lighting system, which provides you with reliable lighting at all times, without the need for charging. In combination with the sturdy luggage rack (15 kg payload) and dynamic handling, riding is so much fun that you won't want to stop - even with luggage. So, where will your next tour take you? City or country?

Facts & Figures

Technical details

MAX. weight (bike + rider + GEar)	130 kg
FORK TRAVEL / LENGTH / OFFSET	0 / 415 / 48 mm
AXLE STANDARD FRAME	142 x 12 mm
THRU-AXLE	172 x M12 x 1.0 mm
Fork installation dimensions	100 x 12 mm
MAX. tire dimension	ETRTO: 40 - 622 (without mudguard) \| Inch: 28 x 1.50
MAX. brake rotor size	180 mm
brake mount	FM160
seat tube diameter	27, 2 mm
headset standard	ZS56 / ZS56
Headset	ACROS AZA636
MAX. chainring size	2x: 48/34T \| 1x: 46T
DERAILLEUR HANGER	UDH
water bottle mounts	2
CHILD TRAILER READINESS	Yes
COMPATIBILITY BIKE RACK	KSA18

Intended use

Bike classification: ASTM category 2
Learn more (PDF)

Bicycles and e-bikes that are used on unpaved roads, gravel roads, forest roads and light trails (S0) with moderate ascents and descents in addition to category 1 use. Under such conditions, contact with bumpy terrain and repeated loss of tire contact with the ground may occur. Jumps and drops are limited to 15 cm or less.
Jumps & drops: ≤ 15 cm
Skills: moderate riding technique required
Bike type: Trekking Bike, Gravel Bike

Geometry

The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.

		45/XS	49/S	53/M	57/L	62/XL
A	Seat tube length	430	465	500	535	570
B	Top tube horizontal	535	550	570	585	605
C	Head tube angle	70°	70°	70°	70°	70°
D	Seat tube angle	74°	74°	74°	74°	74°
E	Head tube length	115	135	160	180	200
F	Chainstay length	430	430	430	435	435
G	Wheelbase	1025	1042	1063	1085	1106
H	Bottom bracket drop	75	75	75	75	75
I	Fork length	415	415	415	415	415
K	Fork offset	48	48	48	48	48
M	Stepthrough	725	762	788	818	847
S	Stack	557	575	599	618	636
R	Reach	375	385	398	408	422
STR*	Stack to Reach	1,48	1,49	1,5	1,51	1,51
