Cure :e

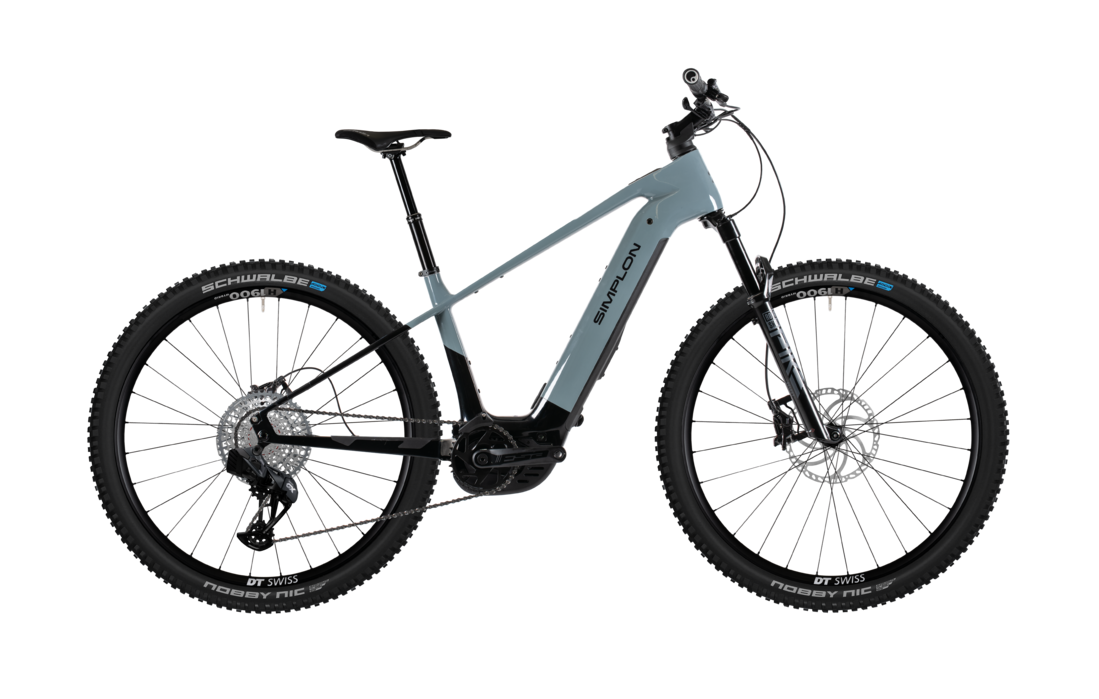

The CURE :e is an E-MTB hardtail designed for a wide range of uses – from extensive tours to trail adventures. The latest Generation 5 of the Bosch E-Bike system, a modern trail geometry with a low standover height, comfort, and sportiness combine together here – and will especially delight purists!
Curious what the following configuration packages are all about?
Then take a look at our magazine article!
For trails, tours and everything in between
The SIMPLON CURE :e takes you anywhere. The lightweight carbon frame of this E-MTB hardtail ensures agility, while the Performance Line CX motor with 85 Nm of torque effortlessly handles steep climbs. The battery? As flexible as your adventurous spirit: 600 Wh for light rides, 800 Wh for longer distances, or 1600 Wh with a Dual Battery for extended tours.
The modern geometry of the hardtail gives you control and stability – even on fast descents. A 120 mm suspension fork and grippy 2.6-inch tires provide comfort and traction, whether on single trails, flow trails, or forest roads.
And then there are the details that impress: The integrated system controller in the top tube keeps the cockpit clean and can be operated with just the touch of a thumb. An optional lighting system at the dropout ensures greater visibility – perfectly integrated into the design. And the battery is easily removable, so you can charge it anywhere, no matter where your hardtail is parked.
Facts & Figures
| MAX. weight (bike + rider + gear) | 150 kg |
|---|---|
| fork travel / length / OFFSET | 120 / 531 / 44 mm |
| axle standard frame | 148 x 12 mm |
| Thru-axle | 200 x M12 x 1.0 mm |
| installation dimension fork | 110 x 15 mm |
| MAX. TIRE SIZE | ETRTO: 62-622 / Zoll: 29 x 2.40 |
| MAX. brake rotor size | 220 mm |
| brake mount | PM7 |
| seat post diameter | 31,6 mm |
| headset standard | ZS56 / ZS56 |
| headset | ACROS AZA636 |
| MAX. chainring size | 36 Teeth |
| derailleur hanger | UDH |
| WATER BOTTLE MOUNTS | 2 |
| MOTOR | Bosch Performance Line CX |
| MAX. support level | 340 % |
| MAX. torque | 85 Nm |
| MAX. power | 600 Watt |
| battery capacity | 600 | 800 Wh |
| RANGE EXTENDER | 250 Wh |
| charge on bike | Yes |
| removable battery | Yes |
| Child trailer readiness | No |
| kickstand compatible | KSA18 |
Bike classification: ASTM category 3
Learn more (PDF)
 |
|
GEOMETRY
The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.
| 37/S | 39,5/M | 42/L | 44,5/XL | ||
|---|---|---|---|---|---|
| A | Seat tube length | 380 | 420 | 480 | 530 |
| B | Top tube horizontal | 593 | 615 | 636 | 662 |
| C | Head tube angle | 66 | 66,5 | 66,5 | 66,5 |
| D | Seat tube angle* | 74 | 74 | 74 | 74 |
| D1 | Seat tube angle | 74 | 74 | 74 | 74 |
| D2 | Rail height | ||||
| E | Head tube length | 131 | 137 | 141 | 162 |
| F | Chainstay length | 465 | 465 | 465 | 465 |
| G | Wheelbase | 1182 | 1199 | 1221 | 1249 |
| H | Bottom bracket drop** | 50 | 50 | 50 | 50 |
| I | Fork length | 531 | 531 | 531 | 531 |
| K | Fork offset | 44 | 44 | 44 | 44 |
| M | Stand over height | 735 | 735 | 735 | 735 |
| R | Reach | 410 | 430 | 450 | 470 |
| S | Stack | 637 | 645 | 649 | 668 |
| STR | Stack to Reach*** | 1,55 | 1,5 | 1,44 | 1,42 |
All lengths in mm
* The effective seat angle (D) indicates the actual sitting position on the bike, measured at a reference height (D2). Due to the offset of the seat tube in relation to the bottom bracket, the effective seat angle (D) does not correspond to the seat tube angle (D1). The effective seat angle (D) is therefore calculated from the intersection of the straight line, starting from the bottom bracket, with the height of the saddle rail (D2). The height of the saddle rail (D2) corresponds to typical reference sizes for the respective frame sizes.
**Left BB Drop with 29“ front and rear with Flipchip low, right BB Drop when 29“ in front and 27,5“ in rear with flip chip high
***STR: The higher the number, the more upright is the seating position.
