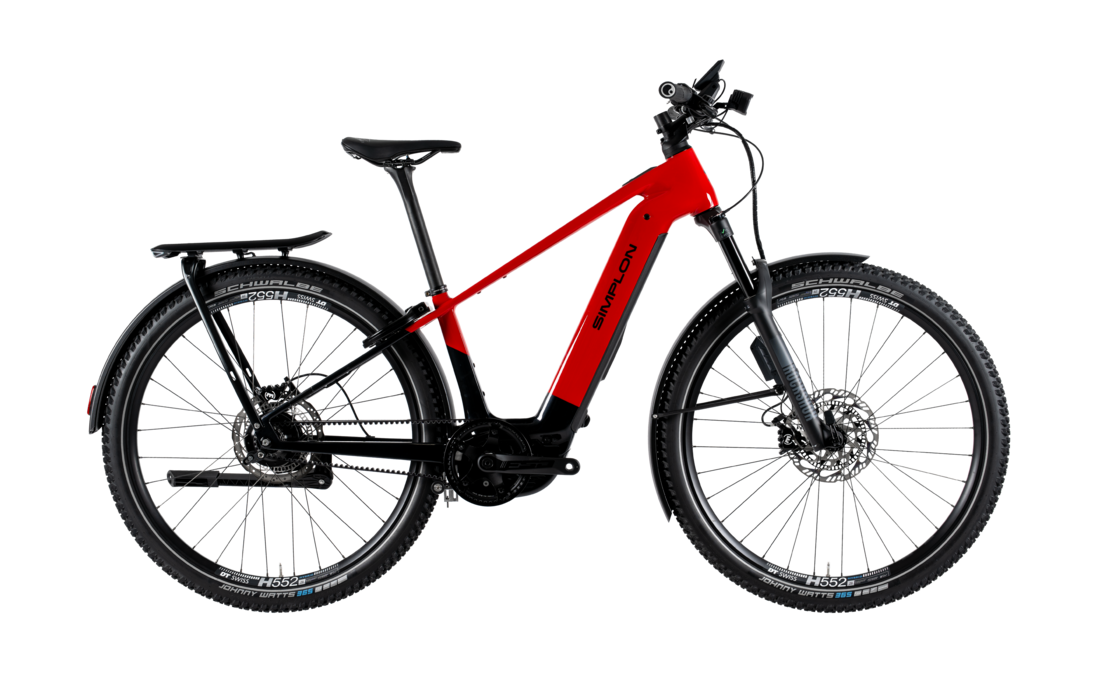

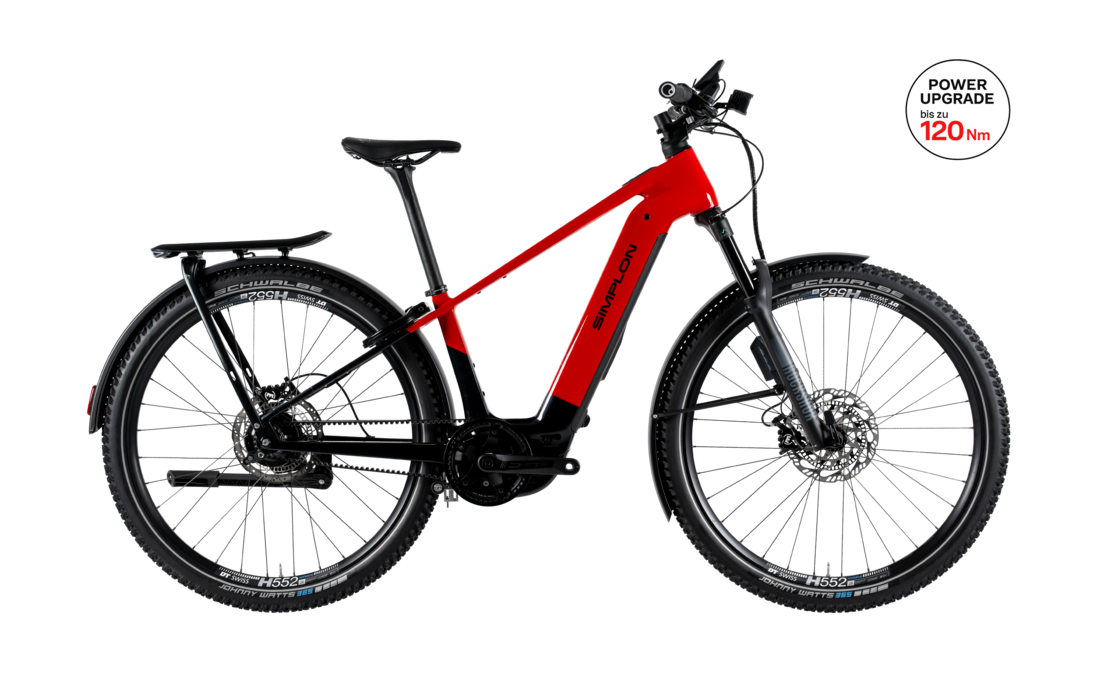

Sengo :e
With the latest Bosch Gen5 e-bike system and flexible battery options (up to 1600 Wh), you can easily tackle mountains and long distances. The 120 mm suspension fork and all-terrain tires offer maximum comfort - complemented by full equipment that makes the SENGO :e perfect for everyday use.
Curious what the following configuration packages are all about?
Then take a look at our magazine article!
Where others give up, you shift up a gear
The SENGO :e is the right SUV e-bike for long trekking tours, daily commuting and spontaneous off-road excursions. Thanks to the powerful Bosch Performance Line CX motor, you can master steep climbs and long tours with ease. The 120 mm suspension fork and wide 2.35-inch all-terrain tires offer outstanding control and comfort - whether you are exploring new paths off the beaten track or conquering the city. The flexible battery concept adapts to the needs of every rider. If you like it more agile and lighter, choose the 600 Wh battery. For longer distances and more range, the 800 Wh battery is the ideal choice.
However, the sophisticated SUV e-bike not only combines comfort and safety, but also suitability for everyday use: with aluminum mudguards and a modern luggage rack with LED rear light and 18 kg payload, the SENGO :e also scores points in the city. And if you want even more, opt for the low-maintenance and easy-to-operate belt drive.
Facts & Figures
| MAX. weight (bike + rider + gear) | 150 kg |
|---|---|
| fork travel / length / OFFSET | 120 / 531 / 44 mm |
| axle standard frame | 148 x 12 mm |
| Thru-axle | 200 x M12 x 1.0 mm |
| installation dimension fork | 110 x 15 mm |
| MAX. TIRE SIZE | ETRTO: 62-622 / Zoll: 29 x 2.40 |
| MAX. BRAKE DISK SIZE | 220 mm |
| brake mount | PM7 |
| seat post diameter | 31,6 mm |
| headset standard | ZS56/ZS56 |
| HEADSET | ACROS AZA636 |
| MAX. chainring size | 36 Teeth |
| derailleur hanger | UDH |
| WATER BOTTLE MOUNTS | 2 |
| Motor | Bosch Performance Line CX |
| MAX. support level | 340 % |
| MAX. torque | 85 Nm |
| MAX. power | 600 Watt |
| battery capacity | 600 | 800 Wh |
| RANGE EXTENDER | 250 Wh |
| charge on bike | Yes |
| removable battery | Yes |
| Child trailer readiness | Yes |
| kickstand compatible | KSA18 |
Bike classification: ASTM category 3
Learn more (PDF)
 |
|
Geometry
The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.
| 37/S | 39,5/M | 42/L | 44,5/XL | ||
|---|---|---|---|---|---|
| A | Seat tube length | 380 | 420 | 480 | 530 |
| B | Top tube horizontal | 593 | 615 | 636 | 662 |
| C | Head tube angle | 66 | 66,5 | 66,5 | 66,5 |
| D | Seat tube angle* | 74 | 74 | 74 | 74 |
| D1 | Seat tube angle | 74 | 74 | 74 | 74 |
| D2 | Rail height | ||||
| E | Head tube length | 131 | 137 | 141 | 162 |
| F | Chainstay length | 465 | 465 | 465 | 465 |
| G | Wheelbase | 1182 | 1199 | 1221 | 1249 |
| H | Bottom bracket drop | 50 | 50 | 50 | 50 |
| I | Fork length | 531 | 531 | 531 | 531 |
| K | Fork offset | 44 | 44 | 44 | 44 |
| M | Standover | 735 | 735 | 735 | 735 |
| R | Reach | 410 | 430 | 450 | 470 |
| S | Stack | 637 | 645 | 649 | 668 |
| STR | Stack to Reach** | 1,55 | 1,5 | 1,44 | 1,42 |
All lengths in mm
* The effective seat angle (D) indicates the actual sitting position on the bike, measured at a reference height (D2). Due to the offset of the seat tube in relation to the bottom bracket, the effective seat angle (D) does not correspond to the seat tube angle (D1). The effective seat angle (D) is therefore calculated from the intersection of the straight line, starting from the bottom bracket, with the height of the saddle rail (D2). The height of the saddle rail (D2) corresponds to typical reference sizes for the respective frame sizes.
**STR: The higher the number, the more upright is the seating position.
