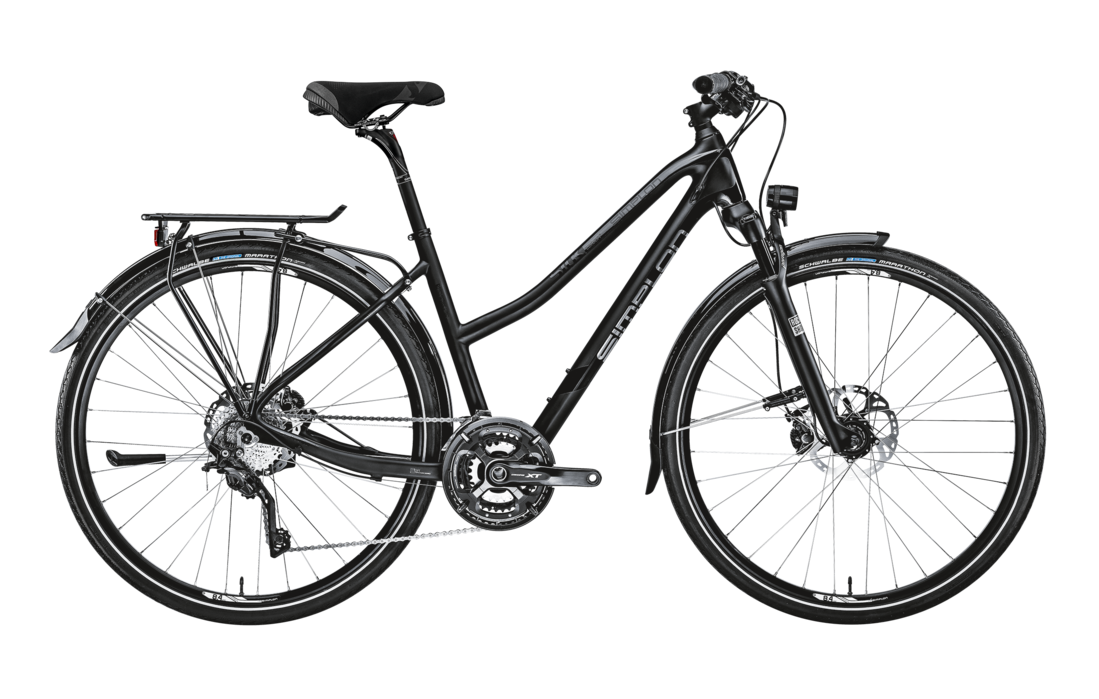

SILKCARBON Mid
The SILKCARBON Mid - a trekking bike that is unrivalled. Made from high-quality carbon fibre, it offers perfect suspension and outstanding reliability. The slim, elegant design emphasises the premium quality and ensures a riding experience that leaves nothing to be desired.
our multi-talent
Versatility? That’s par for the course when it comes to the SILKCARBON. As an ultra-lightweight sports bike, as a standard trekking bike or as a cross bike: This two-wheeler is suitable for any kind of use. Another advantage: It comes in two versions – a low-entry version for women and a standard-top-tube version for men.
Thanks to the bike configurator, you can create your bike entirely according to your wishes and needs!
Facts & Figures
| Bike weight | from 10,00 kg |
|---|---|
| Max. Weight (Bike + Rider + Gear) | 125 kg |
| Fork Travel / Length / OFFSET | 0 / 450 / 50 mm |
| Rear Axle / Thru Axle Length / Thread Pitch | 135 x 10 mm / QR |
| Front Axle | 100 x 5 mm |
| Max. Tire Dimension | ETRTO 50-622 / Inches: 28 x 2.00 |
| Max. Brake Rotor Size | 203 mm |
| Brake Mount | PM7 |
| Seat Post Diameter | 27,2 mm |
| Headset Standard | AZX-200 |
| Bottom Bracket Standard | BSA68 |
| Max. Chainring Size | 26 / 36 / 48 3fach |
| UDH DERAILLEUR HANGER | No |
| Water Bottle Mounts | 1 (Woman) / 2 (Man) |
| Max. Water Bottle Size | Depending on model and size |
| Child Trailer Readiness | No |
| Kickstand Compatible | KSA40 |
| The illustration above is an example. We reserve the right, provided that the type, suitability and purpose of the bicycle are not impaired, to replace individual parts with components of equal or higher value so that the bicycle is delivered differently. |
The SILKCARBON in its Sport/Cross version is equipped with well-conceived and high-quality technology features – as should be the case for a high-end bike like this one.
The beating heart of the Comfort Concept are the ultra-thin curved VIBREX® seatstays attached to the VIBREX® monostay. Special carbon fibres and their layup make the frame extremely flexible. Why’s that good? It ensures smooth riding on rough terrain – and that makes all the difference in terms of riding fun!
Bike classification: ASTM category 2
Learn more (PDF)
 |
|
Geometry
The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.
| SILKCARBON TREKKING | 41/S | 46/M | 51/L | |
|---|---|---|---|---|
| A | Seat tube length | 410 | 460 | 510 |
| B | Top tube length | 575 | 580 | 590 |
| C | Head tube angle | 70° | 70° | 70° |
| D | Seat tube angle | 73° | 73° | 73° |
| E | Head tube length | 125 | 125 | 140 |
| F | Chainstay length | 460 | 460 | 460 |
| G | Wheelbase | 1090 | 1095 | 1106 |
| H | Bottom bracket drop | 75 | 75 | 75 |
| I | Fork length | 465 | 465 | 465 |
| K | Fork offset (rake) | 50 | 50 | 50 |
| M | Stand over height | 597 | 598 | 600 |
| S | Stack | 612 | 612 | 626 |
| R | Reach | 388 | 393 | 398 |
| STR* | Stack to Reach | 1,58 | 1,56 | 1,57 |
All lengths in mm
*STR: The higher the number, the more upright is the seating position.
