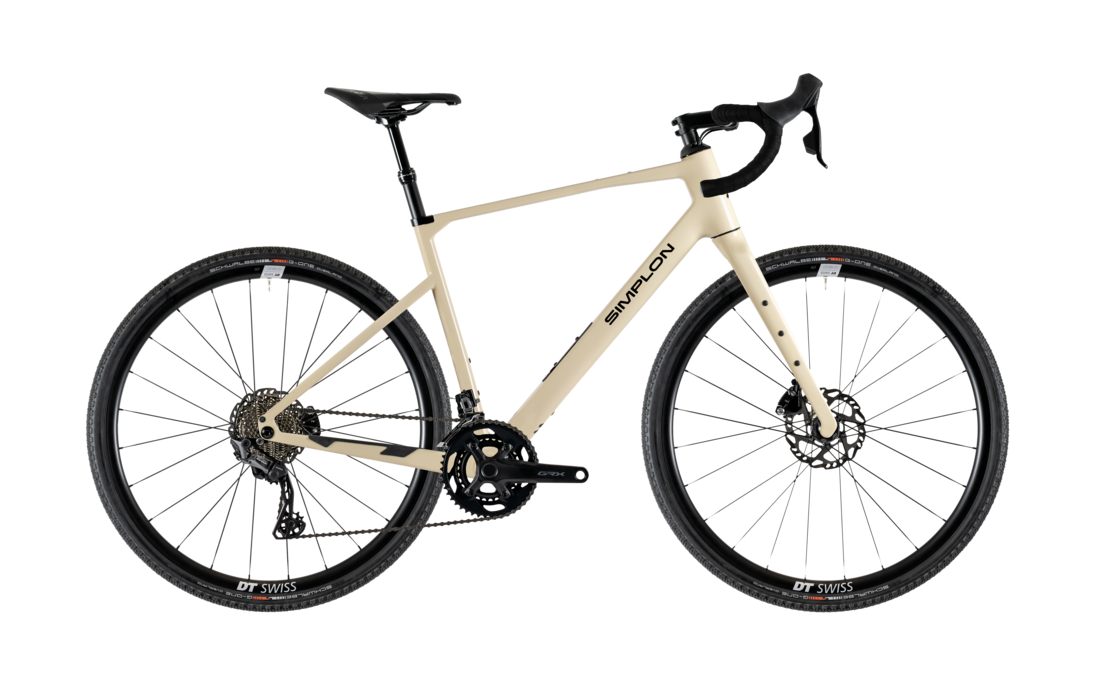

Grid
As a top-tier gravel bike, the GRID combines road bike speed with hardtail robustness. The carbon fork with Raptor dropout provides more comfort, while the 40 mm gravel tires deliver grip and speed - perfect for asphalt, gravel and trails. Maximum versatility, control and riding fun guaranteed.
Curious what the following configuration packages are all about?
Then take a look at our magazine article!
Roads? The GRID doesn't need them.
The GRID is your reliable companion - whatever the terrain. The carbon fork with Raptor Dropout absorbs shocks, offers more flex and lets you roll smoothly even on bumpy trails. The 40 mm wide gravel tires provide the right mix of grip and speed - up to 45 mm is possible for more comfort or off-road performance. The lower bottom bracket position increases stability, while the slacker steering angle gives you the control you need in every corner. And thanks to growing chainstays, you always have the right balance between frame sizes!
But the GRID is not only comfortable, it is also a real packhorse, with 8 mounting points on the frame and 6 on the fork - ideal for bikepacking! There's extra storage space in the down tube: perfect for tools, spare tubes or snacks. We’ve got you covered with a custom multitool and protective bag for a fresh inner tube, as well as mounts for a CO2 cartridge and an Apple AirTag. In short, a gravel bike that is ready for anything, allowing you to concentrate fully on the ride – with a smile on your face.
GeometrY
The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.
| Grid | 45/XS | 49/S | 53/M | 57/L | 62/XL | |
|---|---|---|---|---|---|---|
| A | Seat tube length | 430 | 465 | 500 | 535 | 570 |
| B | Top tube horizontal | 535 | 550 | 570 | 585 | 605 |
| C | Head tube angle | 70° | 70° | 70° | 70° | 70° |
| D | Seat tube angle | 74° | 74° | 74° | 74° | 74° |
| E | Head tube length | 115 | 135 | 160 | 180 | 200 |
| F | Chainstay length | 430 | 430 | 430 | 435 | 435 |
| G | Wheelbase | 1025 | 1042 | 1063 | 1085 | 1106 |
| H | Bottom bracket drop | 75 | 75 | 75 | 75 | 75 |
| I | Fork length | 415 | 415 | 415 | 415 | 415 |
| K | Fork offset | 48 | 48 | 48 | 48 | 48 |
| M | Standover | 725 | 762 | 788 | 818 | 847 |
| R | Reach | 375 | 385 | 398 | 408 | 422 |
| S | Stack | 557 | 575 | 599 | 618 | 636 |
| STR * | Stack to Reach | 1,48 | 1,49 | 1,5 | 1,51 | 1,51 |
| S+ | Stack+ | |||||
| R+ | Reach+ | |||||
| STR+ | Stack to Reach+ | |||||
| U | Steam angle | -12° | -12° | -12° | -12° | -12° |
| V | Stem length | 70 | 70 | 80 | 80 | 80 |
All lengths in mm
* STR: Higher number indicates more upright sitting posture
Facts & Figures
| MAX. weight (bike + rider + GEar) | 130 kg |
|---|---|
| FORK TRAVEL / LENGTH / OFFSET | 0 / 415 / 48 mm |
| AXLE STANDARD FRAME | 142 x 12 mm |
| THRU-AXLE | 172 x M12 x 1.0 mm |
| Fork installation dimensions | 100 x 12 mm |
| MAX. tire dimension | ETRTO: 45-622 (without mudguard) / Inch: 28 x 1.70 |
| MAX. brake rotor size | 180 mm |
| brake mount | FM160 |
| seat tube diameter | 27,2 mm |
| headset standard | ZS56 / ZS56 |
| Headset | ACROSÂ AZA636 |
| MAX. chainring size | 2x: 48T / 34T | 1x: 46T |
| DERAILLEUR HANGER | UDH |
| water bottle mounts | 2 |
| CHILD TRAILER READINESS | No |
| COMPATIBILITY BIKE RACK | KSA18 |
Bike classification: ASTM category 2
