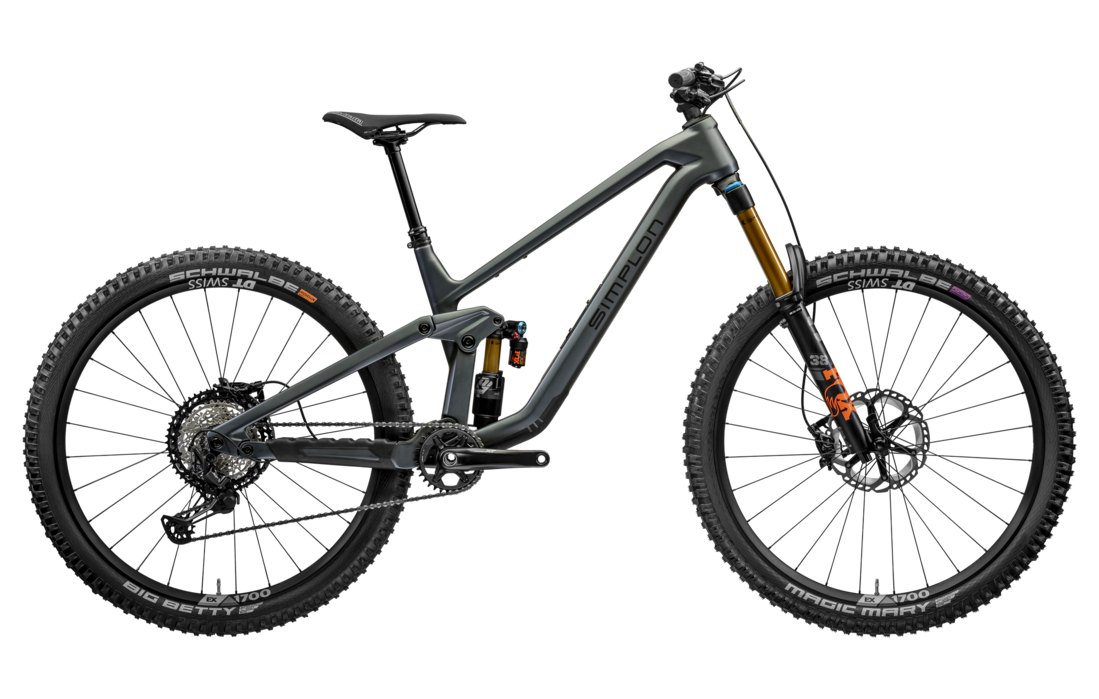

Rapcon
The RAPCON with its 160/160 or 170/160 mm of travel loves demanding trails and enduro tracks. With its 29" wheels, this bike likes it super fast. The well-balanced geometry, the extra low centre of gravity and the solid suspension keep riders safe in the saddle even in extreme situations. The RAPCON is super efficient on the uphill on your next training session – only to put a big smile on your face on the next downhill.
Curious what the following configuration packages are all about?
Then take a look at our magazine article!
AN INSIDER TIP FOR ACTION-PACKED TRAILS
Are you ready for maximum mountain bike action? To finally experience the ultimate flow on the trails? Then you’re in for a treat! You’re now getting high-end level full-suspension technology – in the RAPCON.
The size-specific and moderately long chainstay allows for optimal wheel load distribution. In addition, there is always enough pressure on the front and rear wheel to get a good grip between the tyres and the ground.
Award-winning: The RAPCON impresses across the board with its sophisticated features and clean design, winning the coveted Design & Innovation Award 2022.
Geometry
The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat tube length | 370 | 395 | 420 | 445 |
| B | Top tube horizontal | 568 | 567 | 610 | 633 |
| C | Head tube angle | 64,5 | 64,5 | 64,5 | 64,5 |
| D | Seat tube angle | 78,5 | 78,5 | 78,5 | 78,5 |
| E | Head tube length | 97 | 104 | 115 | 125 |
| F | Chainstay length | 432 | 438 | 443 | 447 |
| G | Wheelbase | 1200 | 1229 | 1259 | 1285 |
| H | Bottom bracket drop | 36 | 36 | 32 | 32 |
| I | Fork length | 574 | 574 | 574 | 574 |
| K | Fork offset | 44 | 44 | 44 | 44 |
| M | Stand over height | 738 | 738 | 744 | 744 |
| R | Reach | 440 | 460 | 480 | 500 |
| S | Stack | 623 | 629 | 639 | 646 |
| STR | Stack to Reach* | 1,42 | 1,37 | 1,33 | 1,29 |
All lengths in mm
* The higher the number, the more upright is the seating position.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat tube length | 370 | 395 | 420 | 445 |
| B | Top tube horizontal | 568 | 589 | 606 | 633 |
| C | Head tube angle | 64 | 64 | 64 | 64 |
| D | Seat tube angle | 78 | 78 | 78 | 78 |
| E | Head tube lenght | 97 | 104 | 115 | 125 |
| F | Chainstay length | 432 | 438 | 443 | 447 |
| G | Wheelbase | 1205 | 1234 | 1264 | 1290 |
| H | Bottom bracket drop | 32 | 32 | 32 | 32 |
| I | Fork length | 576 | 576 | 576 | 576 |
| K | Fork offset | 44 | 44 | 44 | 44 |
| M | Standover | 738 | 738 | 742 | 742 |
| R | Reach | 435 | 455 | 475 | 495 |
| S | Stack | 627 | 633 | 643 | 650 |
| STR | Stack to Reach* | 1,44 | 1,39 | 1,35 | 1,31 |
All lengths in mm
* The higher the number, the more upright is the seating position.
The Trailblazers' weapon in the Enduro World Cup
Established in 2024, the SIMPLON TRAILBLAZERS Racing Team stands at the starting gate of the UCI Enduro World Cup. Their goal: the title. Their tool: the RAPCON. On the team: top World Cup rider and multiple German female national enduro and downhill champion Raphaela Richter, two-time Finnish downhill champion Tarmo Ryynänen and newcomer talent Lars Büngen.
Find out more about the SIMPLON TRAILBLAZERS in our magazine.
Facts & Figures
| Max. Weight (Bike + Rider + Gear) | 125 kg |
|---|---|
| Fork travel / Length / Offset | 150 / 561 / 44 mm or 170 / 586 / 44 mm |
| Shock Size (Eye to Eye Length x Stroke) | 230 x 62,5 mm |
| Upper Shock Hardware | 8 x 30 mm |
| Lower Shock Hardware | 10 x 35 mm |
| Rear Axle / Thru-Axle Length / Thread Pitch | 148 x 12 mm |
| Steckachse | 172 x M12 x 1.0 mm |
| Front Axle | 110 x 15 mm |
| Max. Tire Dimension | ETRTO 62-622 / Inches: 29 x 2.40 |
| Max. Brake Rotor Size | 220 mm |
| Brake Mount | PM7 |
| Seat Post Diameter | 31,6 mm |
| Headset Standard | ZS56/ZS56 |
| Steuersatz | ACROS AZA-636 |
| Bottom Bracket Standard | PF BB92 |
| Max. Chainring Size | 32 Teeth |
| UDH DERAILLEUR HANGER | No |
| Water Bottle Mounts | 1 |
| Bike Trainer Readiness | No |
| Child Trailer Readiness | No |
SIMPLON's technologies are ingenious and smart. Everything you need on the trail comes with you in the Storage Box: Tools, power bars and more are cleverly stored inside the frame of the bike. Xi Geometry stands for the frame-size-specific length of the chainstays, which ensures an even wheel load distribution and thus safety and optimal handling. Rider weight and size affect the kinematics of the bike. Xi Kinematics guarantee consistent suspension performance no matter the frame size.
Bike classification: ASTM category 4
