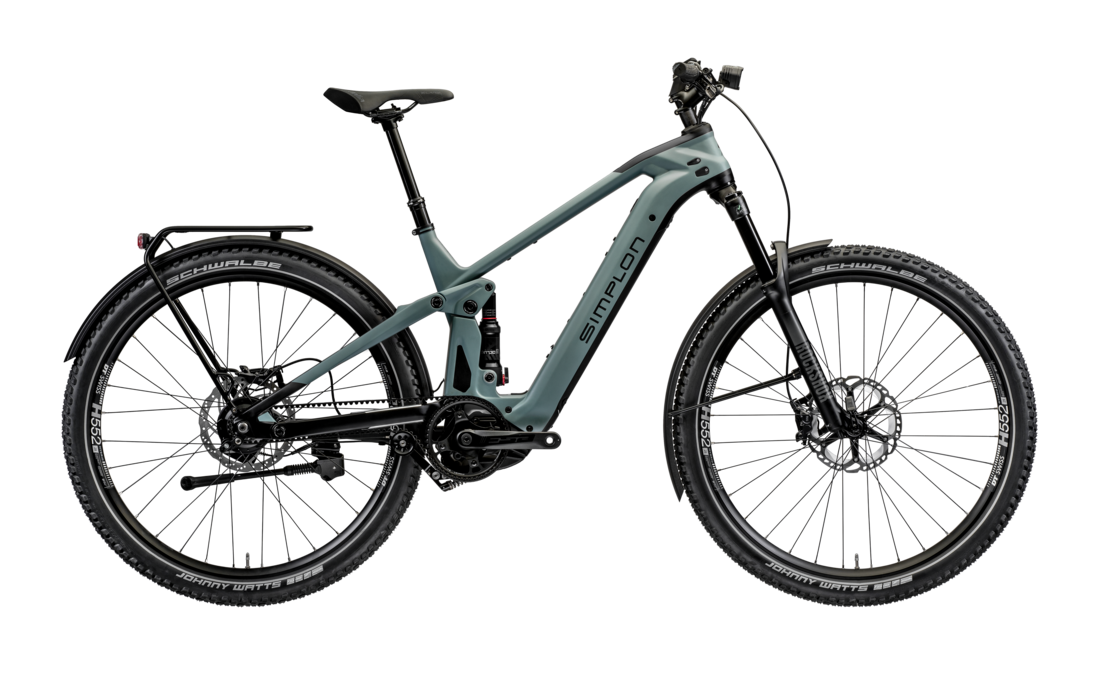

Stomp SUV :e
Superb handling, a powerful full-suspension chassis and up to 1170 Wh battery capacity for unlimited riding excitement make the STOMP a top-class SUV. The all-rounder can also be equipped with stress-free belt drive.
The Jack of all Trades
The high-grade carbon frame of the STOMP SUV :e features innovative solutions that make an SUV bike stand out – in its most beautiful form. The genuine Trail-MTB chassis and the grippy tyres ensure off-road excitement, but also absorb all edges and nasty steps in the city. The powerful and proven Bosch drive ensures cultivated acceleration and a long range (depending on your individual battery configuration). Fully equipped, this is the perfect bike for everyday use, not least thanks to its high maximum permissible weight and approval for child trailers. The configurations are specifically tailored to the needs of different types of riders and can be customized to suit your own requirements. Typical SIMPLON.
GeometrieÂ
Die Geometrie-Tabelle hilft dir dabei, die perfekte Rahmengröße zu finden. Wenn du dir unsicher bist, helfen dir unsere Experten gerne in einem kostenlosen Online-Beratungstermin.
| 38/S | 41/M | 44/L | 47/XL | ||
|---|---|---|---|---|---|
| A | Seat tube length | 380 | 410 | 440 | 470 |
| B | Top tube horizontal | 571 | 592 | 621 | 650 |
| C | Head tube angle | 66 | 66 | 66 | 66 |
| D | Seat tube angle* | 77 | 77 | 77 | 77 |
| D1 | Seat tube angle | 72 | 72 | 72 | 72 |
| D2 | Rail height | ||||
| E | Head tube length | 112 | 112 | 128 | 149 |
| F | Chainstay length | 455 | 455 | 455 | 455 |
| G | Wheelbase | 1204 | 1214 | 1246 | 1280 |
| H | Bottom bracket drop | 30 | 30 | 30 | 30 |
| I | Fork length | 552 | 552 | 552 | 552 |
| K | Fork offset | 44 | 44 | 44 | 44 |
| M | Standover | 758 | 759 | 759 | 759 |
| R | Reach | 430 | 450 | 475 | 500 |
| S | Stack | 610 | 615 | 630 | 650 |
| STR | Stack to Reach** | 1,42 | 1,37 | 1,33 | 1,3 |
All lengths in mm
* The effective seat angle (D) indicates the actual sitting position on the bike, measured at a reference height (D2). Due to the offset of the seat tube in relation to the bottom bracket, the effective seat angle (D) does not correspond to the seat tube angle (D1). The effective seat angle (D) is therefore calculated from the intersection of the straight line, starting from the bottom bracket, with the height of the saddle rail (D2). The height of the saddle rail (D2) corresponds to typical reference sizes for the respective frame sizes.
**STR: The higher the number, the more upright is the seating position.
Facts & Figures
| MAX. weight (bike + rider + gear) | 140 kg |
|---|---|
| fork travel / length / OFFSET | 140 / 551 / 44 I 150 / 561 /44 mm |
| shock size (eye to eye length X stroke) | 185 x 52,5 mm |
| upper shock hardware | 8 x 30 mm |
| lower shock hardware | Trunnion |
| rear axle / thru-axle lenght / thread pitch | 148 x 12 mm / 172 x M12 x 1.0 mm |
| front axle | 110 x 15 mm |
| max. tire dimension | ETRTO: 65-622 / Inches: 29*2.60 |
| MAX. brake rotor size | 220 mm |
| brake mount | PM7 |
| seat post diameter | 31,6 mm |
| headset standard | AZA-639 |
| MAX. chainring size | 34 Teeth |
| UDH DERAILLEUR HANGER | Yes |
| water bottle mounts | 1 |
| MAX. water bottle size | 500-750ml Configuration Dependent |
| MOTOR | Bosch Performance Line CX |
| MAX. support level | 340% |
| MAX. torque | 85 Nm |
| MAX. power | 600 Watt |
| battery capacity | 625 Wh |
| RANGE EXTENDER | 250 Wh |
| charge on bike | Yes |
| removeable battery | Yes |
| child trailer READiness | Yes |
| kickstand compatible | KSA 40 |
Intelligent und vor allem praktisch – die Technologien von SIMPLON machen das STOMP PMAX zum Helden auf jedem Trail! Double Bearing sorgt für optimale Kraftübertragung und Vortrieb. Anhänger ready bedeutet, dass unter Anwendung eines speziellen Adapters ein Anhänger gezogen werden kann. Und Smart Headset verleiht dem Trail-E-Bike einen aufgeräumten Look, da durch die besondere Kabelführung die Züge vom Lenker aus über den Steuersatz direkt ins Rahmeninnere verlaufen.
Bike classification: ASTM category 3
 |
|
Packages
Take off with one of our preconfigured equipment packages and customise it to your personal style!
