Chenoa Bosch CX Uni | -15%
The discount refers to the previous list price and has already been deducted in the bike configurator. The discounted price is valid until further notice and while stocks last.

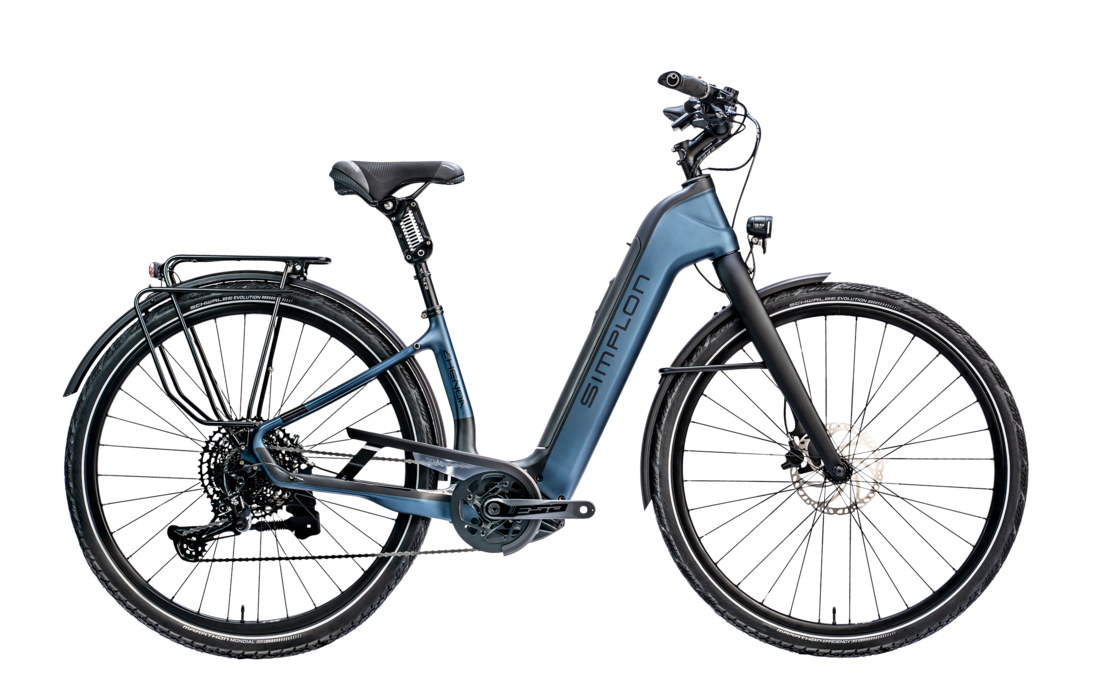

With record values in terms of weight and comfort, the CHENOA UNI outshines the competition. The high-quality carbon frame is the heart of the lightweight e-bike, with the proven Bosch motor and the 625 Wh battery elegantly integrated. If you’re looking for the most exclusive mix of function and design, you can’t get past this bike.
COMFORT NO MATTER WHERE YOU LOOK
Sportier than a city e-bike and more comfortable than an e-MTB: the CHENOA BOSCH CX UNI. For long tours, your daily trip to work or to quickly get to the supermarket – the trekking e-bike is the perfect allrounder. And it hardly gets any more comfortable: Its low entry makes getting on and off the bike a piece of cake, which makes it even more compatible for the city.
The Drive Unit Performance CX by Bosch is a real powerhouse among drive units. With a maximum torque of 75 Nm, it lets you enjoy pure riding fun even on challenging tours – with a weight of only 2.9 kg and a particularly compact frame size.
Facts & Figures
The following technical details refer to the bike model as such. Specific details on the available equipment options can be found in the bike configurator.
| bike weight | from 20,36 kg |
|---|---|
| Max. Weight (Bike + Rider + Gear) | 125 kg |
| Fork Travel | 0 / 460 / 51 mm |
| Axle Standard Frame | 135 x 10 mm |
| THRU-AXLE | QR |
| Front Axle | 110 x 15 mm |
| Max. Tire Dimension | ETRTO: 50-622 / Inches: 28 x 2.00 |
| Max. Brake Rotor Size | 203 mm |
| Brake Mount | PM7 |
| Seat Post Diameter | 27,2 mm |
| Headset Standard | ZS56/ZS56 |
| Headset | ACROS AZA-642 |
| Max. Chainring Size | 48 Teeth; Chainline 53 mm |
| UDH DERAILLEUR HANGER | No |
| Water Bottle Mounts | 1 |
| Max. Water Bottle Size | Depending on configuration and frame size |
| MOTOR | Bosch Performance Line CX |
| Max. Support Level | 340% |
| Max. Torque | 85 Nm |
| Max. Power | 600 Watt |
| Battery Capacity | 625 Wh |
| Range Extender | - |
| Charge on Bike | Yes |
| Removable Battery | Yes |
| Child Trailer Readiness | Yes |
| Kickstand Compatible | KSA 40 |
Top performance thanks to top technologies: That’s what makes our CHENOA BOSCH CX UNI such an exceptional trekking e-bike. For instance, the harmonious integration of the cables in the special headset called Smart Headset. Or the Power Transfer technology: Bottom bracket and chainstays are manufactured from one piece, which significantly increases stiffness.
The following table gives an overview of all implemented SIMPLON technologies. Please note that our special safety feature Steering Stop is not compatible with all forks that you can select in the bike configurator.
Bike classification: ASTM category 2
Learn more (PDF)
 |
|
Geometry
The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.
| Chenoa Bosch CX Uni | 40/S | 47/M | 54/L | |
|---|---|---|---|---|
| A | Seat tube length | 400 | 470 | 540 |
| B | Top tube length | 585 | 600 | 615 |
| C | Head tube angle | 69° | 69° | 69° |
| D | Seat tube angle | 73° | 73° | 73° |
| E | Head tube length | 150 | 165 | 180 |
| F | Chainstay length | 475 | 475 | 475 |
| G | Wheelbase | 1129 | 1145 | 1161 |
| H | Bottom bracket drop | 75 | 75 | 75 |
| I | Fork length | 460 | 460 | 460 |
| K | Fork offset (rake) | 51 | 51 | 51 |
| M | Step-through height | 387 | 387 | 387 |
| S | Stack | 626 | 640 | 654 |
| R | Reach | 394 | 404 | 415 |
| STR* | Stack to Reach | 1,59 | 1,58 | 1,58 |
All lengths in mm
*STR: The higher the number, the more upright is the seating position.
Trailer which are mounted on the rear wheel are allowed for this model.
