Chenoa :e
Sportive e-trekking, redefined: With its lightweight carbon frame and powerful motor, the new CHENOA :e combines lightweight and state-of-the-art technology. Thanks to the customizability, it offers maximum flexibility, comfort and safety to everyday e-biking.
Ready for highest demands in everyday e-biking
Our CHENOA platform defines modern e-trekking with its latest-generation drive unit, plenty of useful, functional features and pioneering solutions. Our engineers have focussed on flexible, practice-orientated solutions and state-of-the-art technology. The high-grade carbon frame with its sporty yet comfortable geometry provides unrivalled fun on every ride. It combines agility with maximum safety for the city, paired with great comfort for longer rides. Based on this platform, the CHENOA :e is amazingly light weight, even with its powerful motor and long-range battery. As one of the most powerful motors on the market, the new fifth-generation Bosch Performance Line CX e-bike system offers exactly the support that is needed at any given moment. The configurations, perfectly tailored to the needs of different types of riders, can be customized individually – including advanced technology such as the ABS braking system for maximum safety. Typical CHENOA, typical SIMPLON.
Geometry
The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.
| 46/S | 51/M | 56/L | 61/XL | ||
|---|---|---|---|---|---|
| A | Seat tube length | 460 | 510 | 560 | 610 |
| B | Top tube horizontal | 590 | 595 | 610 | 625 |
| C | Head tube angle | 69,5° | 70° | 71° | 71° |
| D | Seat tube angle | 73° | 73° | 73° | 73° |
| E | Head tube length | 150 | 160 | 170 | 190 |
| F | Chainstay length | 465 | 465 | 465 | 465 |
| G | Wheelbase | 1118 | 1118 | 1122 | 1138 |
| H | Bottom Bracket drop | 75 | 75 | 75 | 75 |
| I | Fork length | 460 | 460 | 460 | 460 |
| K | Fork offset | 51 | 51 | 51 | 51 |
| M | Standover | 750 | 788 | 828 | 868 |
| R | Reach | 398 | 399 | 410 | 419 |
| S | Stack | 629 | 640 | 654 | 673 |
| STR * | 1,58 | 1,6 | 1,6 | 1,61 | |
All lengths in mm
* STR: Higher number indicates more upright sitting posture.
Trailer which are mounted on the rear wheel are allowed for this model.

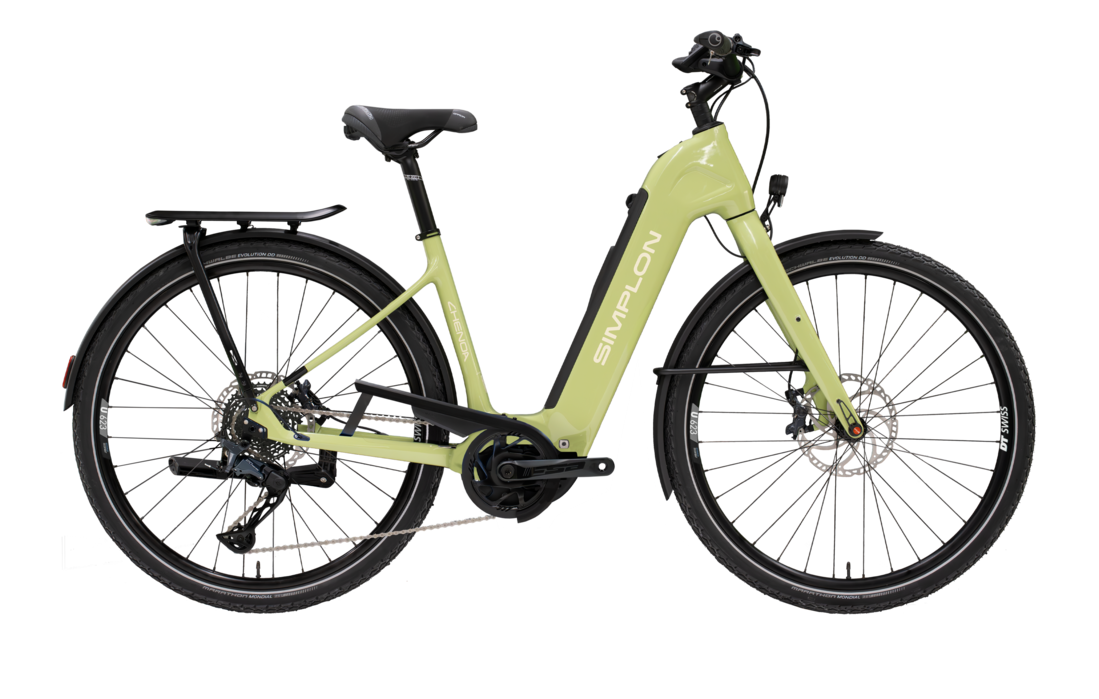

| 46/S | 51/M | 56/L | ||
|---|---|---|---|---|
| A | Seat tube length | 410 | 470 | 540 |
| B | Top tube horizontal | 585 | 600 | 615 |
| C | Head tube angle | 69° | 69° | 69° |
| D | Seat tube angle | 73° | 73° | 73° |
| E | Head tube length | 160 | 175 | 190 |
| F | Chainstay length | 465 | 465 | 465 |
| G | Wheelbase | 1119 | 1136 | 1152 |
| H | Bottom Bracket drop | 75 | 75 | 75 |
| I | Fork length | 460 | 460 | 460 |
| K | Fork offset | 51 | 51 | 51 |
| M | Stepthrough | 390 | 390 | 390 |
| R | Reach | 391 | 401 | 412 |
| S | Stack | 636 | 650 | 664 |
| STR * | 1,63 | 1,62 | 1,61 | |
All lengths in mm
* STR: Higher number indicates more upright sitting posture.
Trailer which are mounted on the rear wheel are allowed for this model.
Facts & Figures
| Max. Weight (Bike + Rider + Gear) | 140 kg |
|---|---|
| Fork Travel | 0 / 460 / 51 mm |
| Axle Standard Frame | 148 x 12 mm |
| THRU-AXLE | 178 mm x M12 x 1.0 |
| Front Axle | 110 x 15 mm |
| Max. Tire Dimension | ETRTO: 54 - 622 Inch: 29 x 2.10 |
| Max. Brake Rotor Size | 203 mm |
| Brake Mount | PM7 |
| Seat Post Diameter | 31,6 mm |
| Headset Standard | ZS56 / ZS56 |
| Headset | AZA636 |
| Max. Chainring Size | 48 Teeth; Chainline 55 mm |
| DERAILLEUR HANGER | SIMPLON |
| Water Bottle Mounts | 1 |
| Motor | Bosch Performance Line CX |
| Max. Support Level | 340% |
| Max. Torque | 85 Nm |
| Max. Power | 600 Watt |
| Battery Capacity | 600 Wh | 800 Wh |
| RANGE EXTENDER | 250 Wh |
| Charge on Bike | Yes |
| Removable Battery | Yes |
| Child Trailer Readiness | Yes |
| Kickstand Compatible | KSA18 |
Bike classification: ASTM category 2
 |
|
